Reference Relations

Reference attributes allow you to connect entities across different templates, creating relational links similar to foreign keys in relational databases or linked records in relational spreadsheets.

---

Common Real-World Use Cases

Source Template	Reference Field	Target Template	Example Relational Link
Support Ticket	Customer	Customer Account	Ticket #104 → ACME Corp
Server Node	Data Center	Facility	prod-db-01 → US-East Region
Order Record	Purchased Item	Product Catalog	Order #5021 → Wireless Headphones
Incident	Assigned Lead	Team Member	Incident #88 → Jane Doe

---

1. How Reference Attributes Work

When you configure a Reference attribute:

1. Target Template: You specify which template’s entities can be selected (e.g. Customer Account).
2. Target Display Attribute: You select which field from the target template will serve as the human-readable label in selection dropdowns and summary tables (e.g. Account Name).

flowchart LR
    subgraph Support Ticket Entity
        T1["Ticket #104"]
        T2["Status: Open"]
        T3["Priority: High"]
    end

    subgraph Reference Link
        T1 -->|References| C1
    end

    subgraph Customer Account Entity
        C1["ACME Corp"]
        C2["Contact: Jane Doe"]
        C3["Tier: Enterprise"]
    end

---

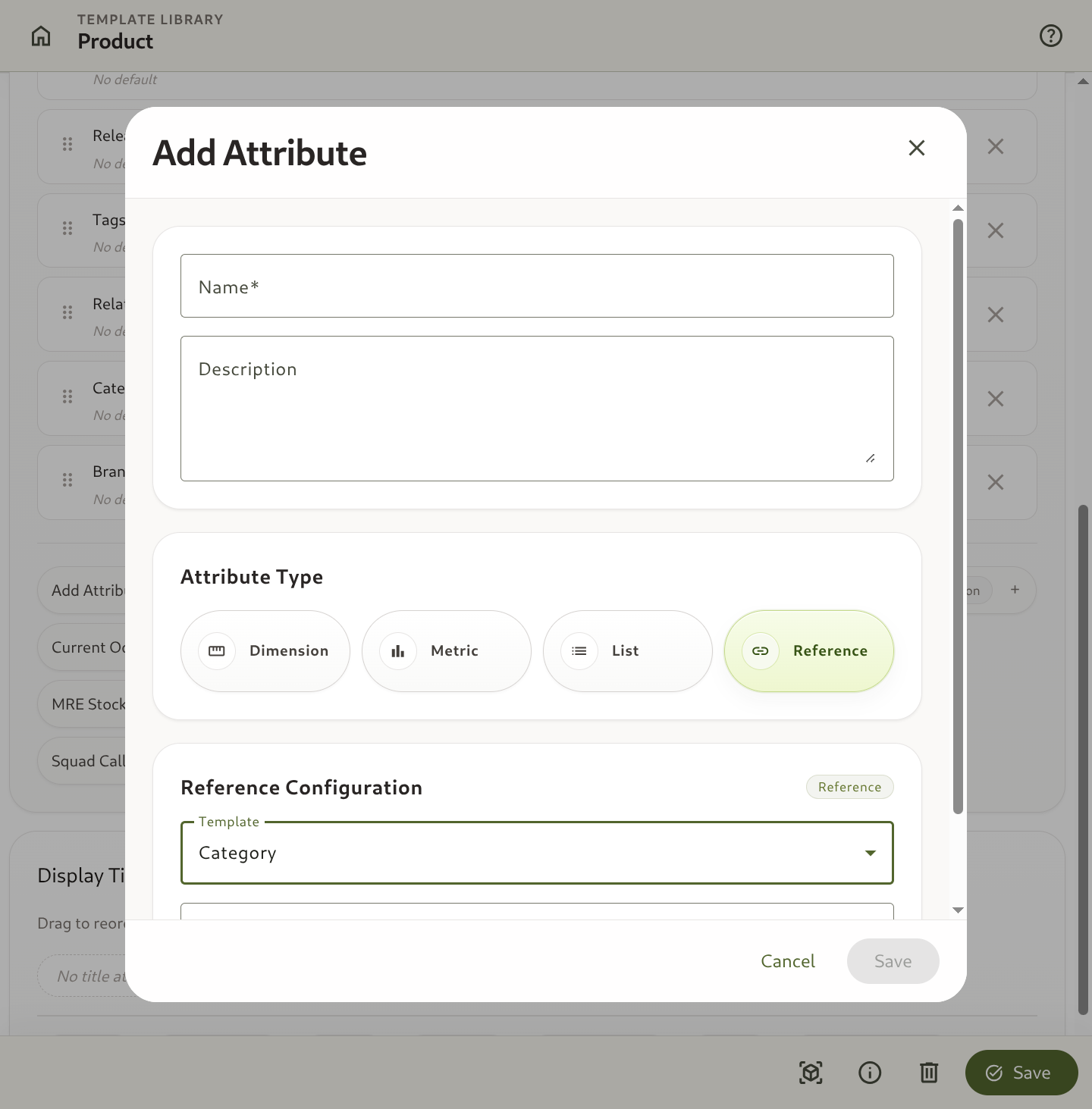

2. Step-by-Step Reference Setup

1. Navigate to Data Modeling → Attributes.
2. Click + Create Attribute.
3. Set Name (e.g. Assigned Customer).
4. Set Attribute Type to Reference.
5. In the Reference Configuration panel:
   • Select Target Template: Choose the template containing target records (e.g., Customer Account).
   • Select Target Attribute: Choose the attribute to display in dropdown lists (e.g., Company Name).
6. Click Save Changes.
7. Attach the Assigned Customer attribute to your source template (e.g. Support Ticket).

---

3. Working with References in Entity Forms

Once a Reference attribute is attached to a template:

• When creating or editing an entity, a searchable lookup dropdown appears populated with matching target entities.
• On the entity details page, clicking a reference link navigates directly to the target entity’s full details.
• In entity search tables, you can filter records by linked references (e.g. Show all Support Tickets where Customer = ACME Corp).

---

💡 Developer Architecture Note

[!NOTE] Relational Integrity & API Querying: References store the target Entity UUID. When querying entities via OpenAPI (GET /api/v1/entity/template/{templateId}), reference IDs are resolved efficiently without expensive SQL N+1 query overhead, providing both the raw entity ID and resolved display attribute values.

---

Next Steps

[!TIP]

• Master entity creation and editing in Entity Operations → Create & Edit.
• Perform complex filtered queries across references in Search & Filters.
